Making Leather Commedia Dell Arte mask - Tutorial and Demo

In case you ever wonder about why I take so long to complete some of these projects, I'm always working on something, even if I'm not blogging about it. I've been working on commissioned masks in the commedia style.  I'm not going to turn this into a maskmaking blog, but I did a tutorial series awhile back on making a miniature version of my favorite mask.

Maskmaker, Maskmaker, Make Me a Mask

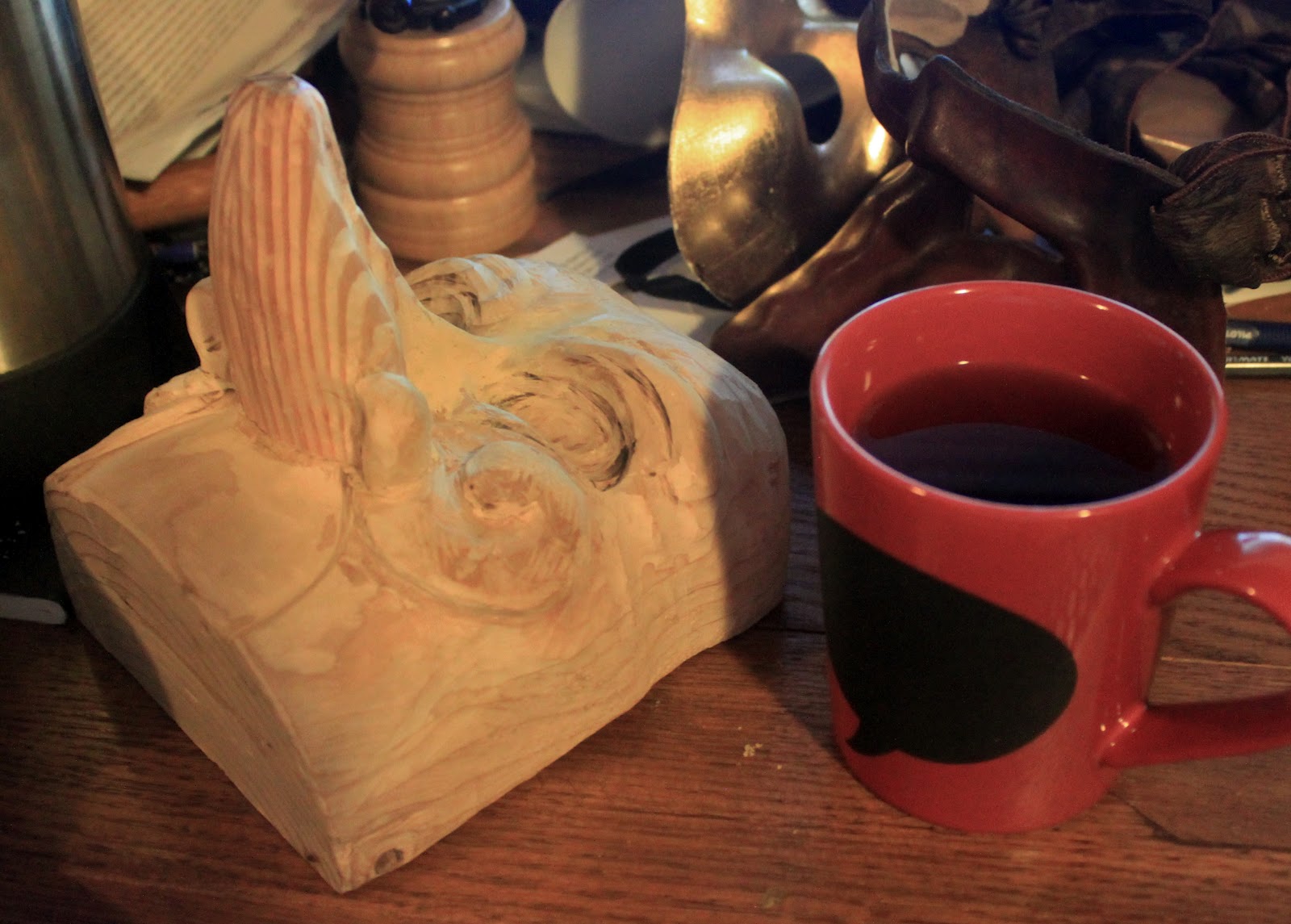

Part One: Planning & Carving
Part Two: Carving & Completing the Matrix
Part Three: Prepping the Leather (Skivving Tutorial)
Part Four: Molding the Mask (Wetforming Leather)
Part Five: Finishing the mask

Now if you will please excuse me, I've miles to go before I sleep...

Leather Jerkin: The torso is done

The body of the doublet is essentially done. I have one collar bit to finish and that's it. Now I start on a sleeve treatment and settle on which of the two options I've been toying with for the waist and shoulders.

My favored option is to go with the shoulder and waist treatments on the Museum of London jerkin. Especially after finding this delightful child wearing a similar jerkin at left. I like the fall of the squared-off wings and the waist treatment suits me well, I think.

In the meantime, I have completed the body of the doublet both in sewing and pinking. All that remains is attaching the shoulder and waist treatments and then tacking in the silk lining.

Please excuse the blue jeans. I was so excited to be almost done, I threw it on and ran outside with my lovely and patient photographer to catch a few shots in the sunshine...

Still not entirely convinced that the pinking necessarily makes the leather more pliable as Janet Arnold proposed. Maybe I didn't make enough pinks, but I'm not certain I could pack them in any closer without making the leather unable to hold itself together. But does look cool and what more can one ask?  It also occurs to me that on a hot day, there are worse places to have additional ventilation...

I will add eyelets at the base when I do the skirting to accomodate lacing/pointing on occasion when I

wear it without a doublet beneath.

Buttons are attached to a thong running up the inside of the doublet, pushed through and laced to the

shank at approximately 1.25" intervals. This attachment is used on the Museum of London doublet, as

recorded by Janet Arnold.

The buttons are a pewter reproduction set that I bought on the internet years ago from Tudor Shoppe.

They are no longer available in this motif. At the time, that was the only place I could find them, but

since then, there have been many more places popping up that sell repro buttons, including the ladies

at Tudor Tailor who have an excellent selection. The next ones I buy will be from them if I don't just

buy some actual 16th century buttons off Ebay and clone them myself.

A better shot of the buttons and button holes.

Leather Jerkin: Pinking & Slashing

Our German friend to the left there is probably responsible for the fashion for slashing and cutting panes into garments in the 16th century.  Costume historians tell us that the flamboyant outfits of the German Landsknecht originated in the tattered garments of the battlefield and the booty. Very quickly, those slashed and draped fabrics became quite stylized as you can see from our fashionable friend, illustrated by Jost Ammon.

The fashion reached its high point in flamboyancy in the late 15th and early 16th centuries, as Teutonic mercenary legions carried their taste for stylish rags across the continent.  By the late 16th century, which is my preferred period for costuming, things had died back quite a bit and the pinks and slashes tended to be smaller, but made up for it in volume.

The leather jerkin I am making is not an exact replica of a painting or extent garment. Though it is inspired by the one at the Museum of London that first inspired me to imagine I might want to wear a leather vest in the August heat.  That garment is pinked with shaped punches to form a Lucky Charm cornucopia of hearts, stars, and diamonds. It's quite a whimsical garment, and if memory serves, Janet Arnold opined that it was meant for a child, a page in Queen Elizabeth's retinue.

Garb Carpenter

I don't have any punches with whimsical shape, nor do I have the time or inclination to make some. For those interested, I am told that Tandy leathercraft now sells punches in the shapes you would need for making the Museum of London jerkin.  Instead, I will be using assorted sizes of round punch and a nice sharp set of cheap bench chisels that I wouldn't want to use for woodworking, but are ideal for cutting leather.

If you want to do this at an event, the chisels used in the 16th century for this are pictured in Queen Elizabeth's Wardrobe Unlocked and a replica set in the back of The Tudor Tailor. I would link to someone currently making them, but I can't find anyone and all the leads I get take me to sites for blacksmiths who are no longer in business.  Apparently not much demand for these things.

The chisels I'm using came in a cheap set that I picked up from Harbor Freight. They're not what I'd choose to use for a woodworking project; they're okay steel but not great.  They do, however, hold an edge well enough to cut leather if you take care of them and keep them sharp.

If your chisels aren't sharp and you don't know how to sharpen them, take the time to learn to do it properly. You will be glad you did.

FAIR WARNING: Do not use a steel tool on damp leather. Make sure both are dry or the iron in the chisel will stain the leather black. Ever wonder why black leather was so prevalent for so much of history? That's why. Put it in an iron-oxide bath and your leather will be black before you know it.  This is why leather stamps tend to be coated or made out of stainless steel.

There's not a lot to say about this, so here are some pictures...

There's not a lot to say about this process other than to show you some pictures.

This picture gives a good idea of the size of the slashes. Also dispels any notion you might have that I'm a manicure sort of guy...

After examining as much as I could of some period ones, I didn't want it to look too precise. I marked the larger holes 3/4 inch apart, and marked one edge of each slash, one inch apart, then free-handed the rest of the holes and the angle of each chevron. So there's a bit of variation in each.

I decided to eyeball the chevrons to keep things from looking too staid and mechanical.

A decent set of hole punches is worth its weight in gold when you're doing this.

This is the back of the jerkin, almost done.

On the youth's jerkin at the Museum of London, Janet Arnold opined that the diamonds of holes at the back of the neck were intended to increase the pliability of the leather.  It certainly does that, but not so much that I'm inclined to think she was right. There are easier and better ways to make thick leather bend where you want it to, mostly by thinning it, which is considerably less work that this was. Honestly, I think it was decorative and the pliability thing was a nice bonus.

It is pretty, though...

Leather Jerkin: Sewing & Seams Revisited

It is time to sew some leather. This project will be a combination of some machine stitching for the structural seams and then a lot of handwork to finish up the edges.

When I first mentioned this project, I showed quite a few seam options and talked a bit about the unique concerns of sewing leather garments. Some of these problems are basically created by machine sewing, which is one reason I'll be doing so much handwork on this doublet.

One of the concerns of sewing leather that you don't run into with cloth very often is friction. Leather will build up friction against the bottom of the standard stainless steel sewing machine foot.

There are a couple of options for addressing this. One way I've seen work is silicone-impregnated "parchment" paper, sold in cooking stores. A few years ago, my wife bought me a foot that has been coated in Teflon. They're a bit spendy, but less fiddly than working with sheets of parchment.

WARNING: Not all machines are strong enough to sew leather. If yours is not, you can actually burn out the machine or strip the gears, so if you're at all unsure, I'd say you should handsew or find someone with an industrial machine they can loan you.

Stitches & SeamsThere are two essential kinds of seam that I will be using on this project and they are not the ones I'd intended to use.

I was planning to make a lot of use of what I call the "Arnold" seam in honor of Janet Arnold, who wrote the book where I saw one the first time. In the Arnold seam -- which she documented for a couple of different extent leather garments -- has a piece of thinner leather sandwiched into a seam to protect the stitches from being rubbed or ripped apart.

When I started using that style on some of the test pieces as shown above, I was dissatisfied with the final effect. Instead, I will be using the lapped seam discussed earlier, and in lieu of the Arnold seam, I will use a felled seam which gives strength greater even than that of a lapped seam and also lends a structure to the garment akin to what you would get from light boning.

The felled seam is a simple enough concept.  Sewing right-sides together as you would any normal seam, cutting away one side and then folding over and sewing flat the remaining seam allowance to finish the seam.

The examples below were all sewn on the hotrod.

Leather jerkin: Pattern layout & Preparation

Today, I finally get off my duff and begin my leather jerkin project...

Patterning, Plotting, and Planning:Orienting pattern pieces on a piece of cloth is fairly straightforward. Cloth is woven with a definite grid of warp and weft fibers, so you know what you're going to get. Stretch on a piece of cloth runs on the diagonal (bias) because the fibers slide more easily diagonally than they do laterally.

Because leather was once the skin of an animal, it has its own concerns where placement of pattern pieces are concerned. Leather has a lot of give to it and while there are definitely directions in which the leather stretches better than in other directions, those are not necessarily uniform across the entire hide. As discussed in the posts on mask making, the areas nearest the belly of the animal are the stretchiest.

Alcega's doublet pattern layout on a rather narrow width of cloth.

There are a lot of other factors that play into these considerations, including the origin of the leather (cow or calf, sheep or lamb, deer or doe... etcetera.) Breed, gender, and age are huge considerations in choosing leather. Female and/or younger animals have suppler hides because their skin is higher in collagen, same as my skin is not as supple as a lad half my age. Even on leathers from the same animal, how the leather was tanned will be another consideration.

This is all compounded by the fact that unlike the cloth that comes from your local weaver, leather thickness is not uniform across the whole of the hide. So pattern pieces should be oriented so that the thinner places are along the outer edges where you were going to have to skive away leather anyway.

Pattern Placement and Cutting:

Holes you make in the leather won't 'heal' like they do in cloth. So we can't really use pins. I know some folks use them in the seam allowance, but I don't like to do so. If you feel that you cannot get by without some pins, then to the seam allowances with you!

I lay the pattern pieces on the back side of the leather and either tape them or weight them down and trace around them.

Note the way I oriented the pattern pieces in the photo above, taking the most advantage of areas of leather free of things like bullet holes and other imperfections. Unless you have in your project budget to buy multiple five-star hides and use the best of each, some imperfections are par for the course. They add character as far as I'm concerned.

Also, note how the stretchier areas at the edges are kept to the areas that will need to be stretchier and/or thinner on the final garment.

Stabilizing the Leather:
There are ways to get leather to be more stable as a final garment and I'm going to use a flat lining technique with a slightly... okay, very modern twist.

Once upon a time, I bought a leather sport coat at a thrift store and took it apart to use the leather for something else. I was surprised to discover that across the whole of the garment, the leather had been glued to a piece of lightweight interfacing.

The interfacing peeled right off, as pellon is wont to do when thumbnail is applied, but it was a bit of an "Aha!" moment for me.

A jerkin needs to be a fairly structural garment, even if made from a lighter leather. Because I'm using a very stretchy skin, I plan to adhere my leather to a denim-weight canvas using a spray adhesive. This will bond the two together so that I can treat it as one layer. This adhesion will be backed up with stitches later, but the adhesive allows me to work with it fairly roughly (note that I've used a chisel to slash one of the test bits below.)

You can use almost anything for this from lightweight pellon to a cheaper hide if you want. It all depends upon how much structure you want or need to lend your final garment.

The final pieces. Cut out and stabilized.

Is this a period technique?

Well, 3M was founded in 1902 and probably didn't start making aerosol adhesives until the 1950's at a guess.

Flatlining certainly is. Using layers of fabric to reinforce and stiffen areas of cloth and leather garments, certainly. Gluing it on?  I don't really know.

If you wanted a more period-appropriate method, do the same thing with linen or hemp canvas, adhered with hide glue. It would accomplish much the same thing, but hide glue is messy and much stiffer than the 3M spray product I used here. Which is why I opt for the modern convenience.

The adhesion provided by the glue will allow the two pieces to move as one, each lending the other its greatest strength. The denim lends the leather body and the leather (and the glue) keep the denim from fraying out too much where I've slashed it.

I'll talk more about pinking and slashing in another post.

The Lord Mayor photoshoot

The faire has been asking me for photos of my Lord Mayor, and I finally have enough of the costume done to take some character photos.  Today, we took advantage of the nice weather to do a proper photoshoot with props and all.

"Our Lord Mayor, the Right Honorable, Sir James Winterbottom likes to style himself as the consummate Elizabethan gentleman adventurer. Never mind that the Elizabethan adventurer is generally brave, stalwart, and daring, whilst Sir James is generally agreed to be devious, scheming, and greedy. Being an educated man, Sir James knows that being rich allows him to pay people to say he's those other things rather than go to the bother of being any of them. The passage of Her Majesty's court through his town is the perfect opportunity for Sir James to advance his fortunes and possibly buy his way into a proper title.

Do you solemnly swear you are up to no good? The Lord Mayor is always looking for minions! Visit him and as long as they promise to say nice things about him to the queen, he will induct thy children as members of the city watch, instructing them in the ancient arts of villainy and mischief."

Looking slightly perturbed at being interrupted as he counts his money...

A little too friendly for such a scoundrel...

More scoundrel!

MMmmmmmmm... pointy!

Just enough scoundrel! This is the one that will appear on the faire's website.

So you would like a loan, would you?

Reasonable interest rates!

I loved this one, but again, it's a bit too friendly.

The photographer said "Look more diabolical! Twirl your mustache or something!"

Going Dutch II: More Pattern Pondering

Here is an extant cloak that belonged to Don Garcia d'Medici. Known as a "capotto" (a term still used in Italian to refer to an overcoat, see my earlier point about being the pea coat of it's day) it is of essentially the same style and shape as a so-called "Dutch" cloak.

For another costumer's thoughts on the making of a cloak like this, I encourage you to check out Katerina's Purple Files for a much more ornate cloak than I intend to make here.  I especially admire her handmade frog closures: http://katerina.purplefiles.net/Dafydd/DFL_Capotto1.html

Going Dutch :: Any shelter in a storm...

Pouring down rain, but still shouting. That's how I roll.

Not to tempt fate, but our faire has had several years of uniformly excellent weather. Which means it's been awhile since I've had to think about a wet weather option for costuming.

The show, after all, must go on.

My old fallback has been my beloved old parti-coloured "Tolkien Cloak" (seen at right) with it's overcape and voluminous hood. The hood is so deep that the nose of my mask was protected except in the most determined downpour.

All well and good. But it's a fantasy piece, not a period one. Fine enough for a fool, I guess, but I'm a gentleman now and should dress the part.

Oh, and I want something that doesn't drag in the mud.

After a lot of poking around and looking at what everyone else wears at our faire, I've decided to replace it with something not often seen at faires in these parts: a Dutch Cloak.

Looking at some of the paintings and drawings from the age, it's hard to escape the idea that the Dutch cloak was the pea coat of its age. Usually shown worn like a cloak, it nevertheless has sleeves that are usually decorated with stripes of trim either diagonally or horizontally arranged as in the image below.

Below is the pattern for a ropa (a type of robe -- click to biggie-size it) from Juan de Alcega's pattern book. The Dutch Cloak seems to be a halfway point between the ropa and a circle cloak. The shape and arrangement of the standing collar, epaulets, shoulder seams and sleeves are similar to the ropa, grafted onto a circle cloak.

Note that the upper body in the pattern is nearly identical in proportions and arrangement of elements to a doublet pattern.  I based the pattern I'll be using on the pattern I use for a doublet, sized up in the body and drawing out a line from the bottom of the armscrye to the edge of the wool to give maximum drape and flow to the cape.

More soon!
